ROQ LABEL P&A

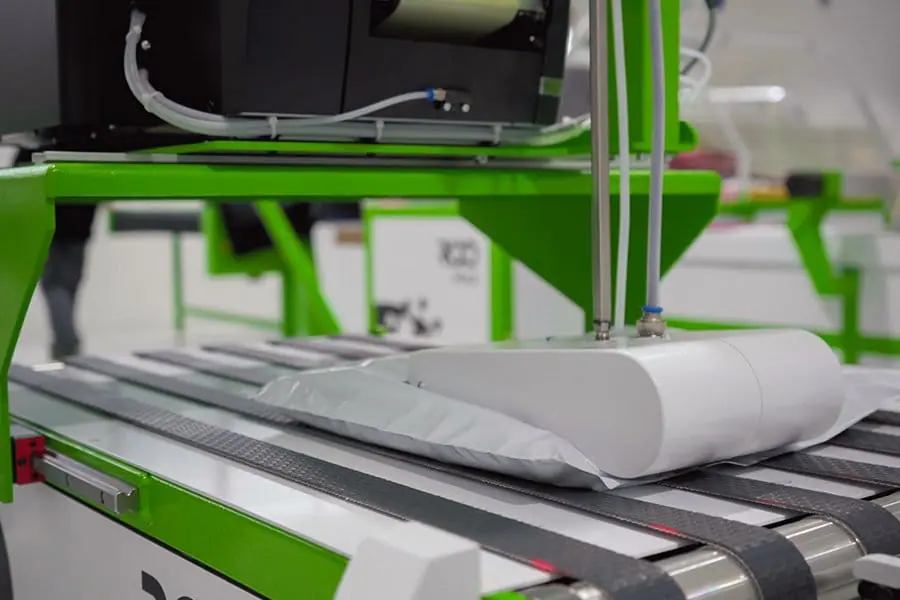

Automatic labelling machine applies labels to packed garments
Designed to work with the ROQ PACK or ROQ BAG. The ROQ Label P&A does not need a dedicated operator. The folding line connects and synchronises its speed so all machines work at the same pace, allowing for a constant and steady workflow. Positioned at the end of the packaging line, it simplifies and makes the labelling a uniform process. Add value to your garments & packaging, providing complete service and presentation.
Additionally, labels are completely configurable from ROQ Fold, Bag, or Pack console. All the information contained on the label is configurable according to your customer’s needs. Various label size configurations available, labels up to 90 mm wide.
KEY FEATURES
- Automatically prints and applies labels to packed garments
- Labels up to 90 mm wide
- Fully customizable labels as per final customer requests
- Works in conjunction with the ROQPACK and ROQBAG
- 700 labels/hour
ROQ Label features at 3:30 in following video
PRODUCT SPECIFICATION
| Length – mm (in) | 1303 (51.3”) |
| Height – mm (in) | 1444 (56.8”) |
| Width – mm (in) | 678 (26.7”) |
| Machine weight – kg (lb) | 100 (220.4) |
| Maximum label width x length – mm (in) | 80×65 (3.1” x 2.55”) or 100×65 (4” x 2.55”) |
| Maximum label width x length – mm (in) Optional | 100×150 (4” x 5.9”) |
| Maximum roll and coil roll diameter – mm (in) | roll up to outside 200 (7.8”) and coil roll 76 (3”) |
| Maximum production – (pieces/h) | Same as ROQ Fold |
| Print resolution | 203 Dpi (300Dpi optional) |
| Print method | Direct thermal/Thermal transfer |
| Maximum Print Width – mm | 104 (4”) |
| Label thickness | 0.13mm – 0.17mm |
